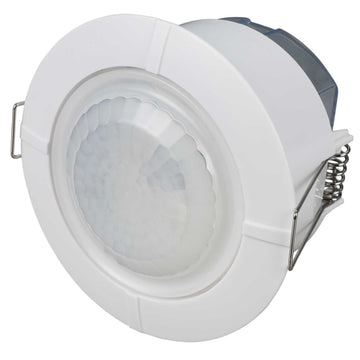

Timeguard 360 Degree Flush Mount Ceiling PIR - SLFM360L

Ideal for energy saving installations in the workplace, corridors, offices, toilets etc., where light control can make all the difference.

Features:

• Flush mounting
• 360º ceiling flush mount PIR presence detector
• 6m diameter (3m radius) detection range at 25m mounting height
• No creep zone – maximum coverage
• Light ON time adjustable from 5 seconds to 18 minutes
• Manual ON/OFF override
• IP44 weatherproof rating (suitable for indoor use only)
• Total PIR switching: 2400W (eg 20x 100W GLS) incandescent or halogen, 500W fluorescent, 150W CFL/Low Energy, LED lamps <10W Lamps, max 10, LED lamps >10W <32W, max 5 sets
• Not suitable for discharge lighting
• 75W fan

Specifications:

• 1 or 2 Channel: 1 Channel
• 1st Channel Filament/Halogen Loading: 2000/2000 W
• 1st Channel Fluorescent/Low Energy Loading: 500W
• Total PIR Switching: 2400W Incandescent/Halogen, 500W Fluorescent, 150W CFL/Low Energy, LED lamps <10W Lamps, max 10, LED lamps >10W <32W, max 5 sets.
• Detection Range (Max) Metres: 6 (Diameter)
• Angle of Detection: 360º
• Light ON Time After Last Detection (Adjustable): 5 Seconds (Min), 18 Minutes (Max)
• Permanent ON Facility: Electronic
• Adjustable Light Level Control: Yes
• EC Directives: Conforms to Latest Directives
• Dimensions: Height: 88mm x Width: 88mm x Depth: 70mm
